Wood/metal working
Working area:
Max. height of workpiece:
Max. processing speed:
Max. acceleration:
Tech. motion system:
Laser power:
Laser safety:
Cooling system:
Cutting table:
Lens:
Nozzles:
Motion control:
Software:
Exhaust system:
Supported Materials:
1300 mm x 900 mm
45 mm
2 m/s
15 m/s²
Servo motors
Sealed-off CO2 DC 120W
CDRH laser safety, laser class 2, CE compliant, double interlock safety system, kill and key switch
Water-cooled
Aluminium grid
2.0"
Air-assist Ø3 mm and Ø7 mm
OptiMotion
Ruby laser software
Atmos Pure 600 filter
Wide range of materials can be cut or engraved
Working area:
Max. height of workpiece:
Max. processing speed:
Max. acceleration:
Tech. motion system:
Laser power:
Laser safety:
Rotary engraving:
Cutting table:
Lens:
Nozzles:
Motion control:
Software:
Exhaust system:
Supported Materials:
610 mm x 305 mm
157 mm
2.8 m/s
40 m/s²
Burshless DC servo motors
Diode 40W
CDRH laser safety, laser class 2, CE compliant, double interlock safety system, kill and key switch
Yes
Ferromagnetic honeycomb grid
50 mm
Air-assist
OptiMotion
Ruby laser software
Atmos Cube 230V filter
Wide range of materials can be cut, engraved or marked

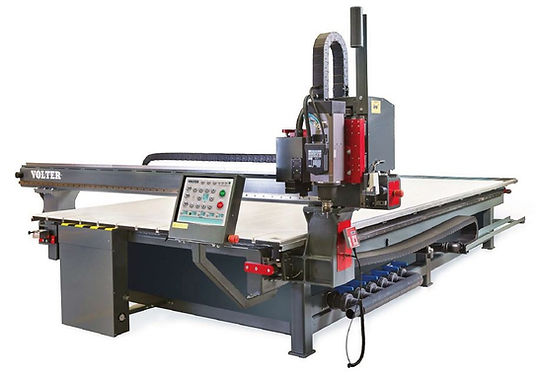

Working area:
Max. height of workpiece:
Max. travel speed on
X and Y axes:
Max. travel speed on
Z axis:
Type of drive for Z axis:
Type of drive for Z axis:
Spindle power:
Spindle rotation speed:
Tool clamping:
Tool management:
User interface, controller, software:
Dust collector:
Vacuum table:
Vacuum pump:
Supported materials:
2600 mm x 1610 mm
160 mm
500 mm/s
100 m/s
Servo, ball screw
Servo, planetary gear heads, helical racks
6.6 kW Quick Release
From 1000 to 24 000 RPM
Pneumatic
Autmatic tool changer and calibration
Touch screen monitor + remote control, Volter CS, Vectric VCarve Pro
Yes
4 zones
7.5kW Vortex
Wood, MDF, plastics, softer metals (i.e. aluminium), composites, (NO steel)
